Brunton Pocket Transit
Lightweight Waterproof Aluminum
Body with 0-360 degree Azimuth
Ring, and Leather Case
List price $538.
Only $449.
Optional Ball and Socket Tripod Mount
List price $88.
Only $60.

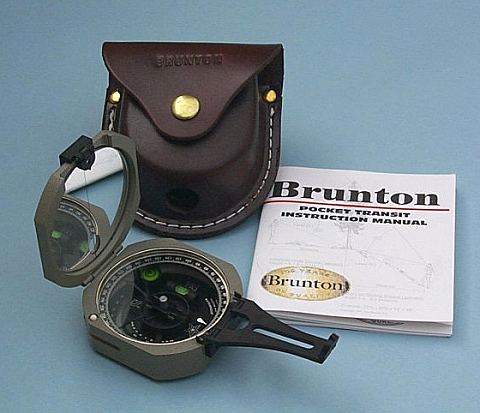

Brunton Pocket Transit
|
|
This compass is the famous Brunton Compass designed by Colorado mining engineer D. W. Brunton.
In 1894 Brunton received a patent for his new compass and within a few years it
became widely used throughout the world.
Since Brunton's patent has expired, other high-quality and low-cost pocket transits have been
introduced to the market.
Still, the Brunton Compass remains many geologist's most trusted tool, combining the principles of the
surveyor's compass, prismatic compass, clinometer, hand level, and plumb.

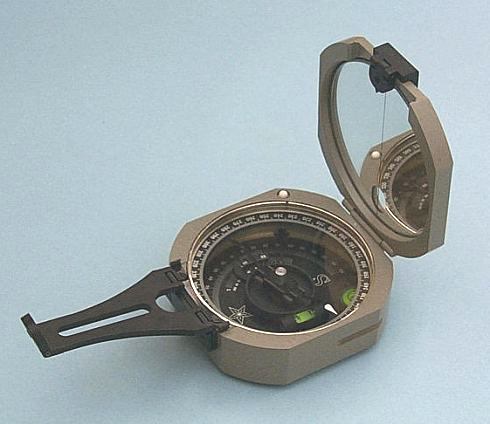

It unfolds to produce two sights with peepholes.
You can either sight through a clear
window in the lid or lay the lid fully open and use the second hinged peep sight.
The inside cover has a mirror with a vertical line inscribed.
|
|
This F5006LM Brunton Pocket Transit features a single NdFeB magnet that resists demagnetization better than
other types of magnets for increased reliability.
The compass needle has a sapphire jeweled bearing and is induction damped needle for quick and high accurate readings.

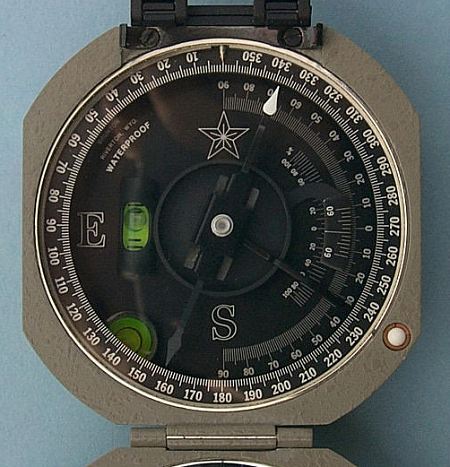

The perimeter of the face has a compass rose and the interior of the compass rose has two
spirit levels and a movable scale for use as a pocket transit.
There is a slotted screw on the outside of the case that turns a gear that
rotates the entire compass rose to adjust your local magnetic declination angle
(the difference between true north and magnetic north).
Closing the compass lid moves a needle lift mechanism that
protects the jewel bearing when transporting the compass.
|
|
Turning the compass on its side and adjusting the spirit level allows for an
altitude angle measurement (while viewing the spirit level using the mirror hinged at 45-degrees).
The Brunton Pocket Transit is still made in the USA and comes with a one-year warranty.
This model F5006LM is accurate to 1/2 degree in azimuth, and has a 10 arcminute resolution for vertical angles.
The compass measures 2 3/4 inches (7 cm) by 3 1/16 inches (7.8 cm), is 1.25 inch (3.2 cm) thick, and weighs 6.5 ounces (184 grams).
The F5006LM has a National Stock Number of NSN 6675-01-127-8394.
The list price for the F5006LM Brunton Compass with leather case is $538, but we are offering
it for only $449.
|
International Balanced
We receive many complaints and there is much confusion about Brunton's
claim of an International Balanced compass needle.
It is widely assumed that International Balancing means that the compass
will work at any geographic latitude.
According to Brunton, International Balancing means that the compass will
perform properly at any longitude within a specific range.
This is misleading because compass balance is affected by the Earth's magnetic dip
angle which mainly varies with latitude, not longitude.
Brunton offers three models each balanced for a specific region: Northern, Central,
and Southern latitudes.
We only stock the model balanced for the Nothern latitudes and Brunton
does not offer free rebalancing, but rather charges $40
to rebalance the compass.
|
|
|
Click on any of the thumbnail images to view a larger image.
|

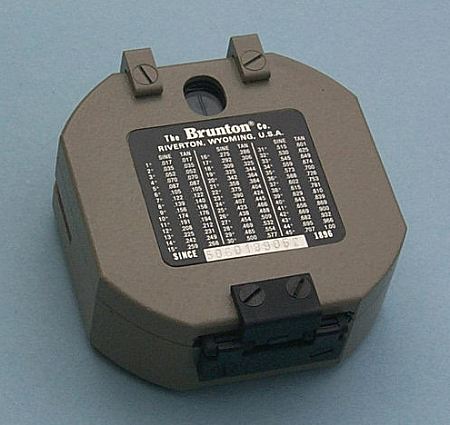

 Case of Brunton Compass |

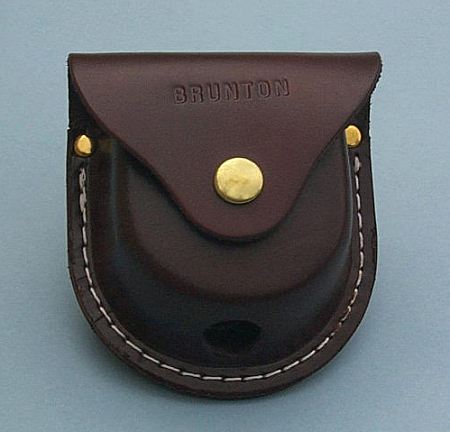

 Leather Case |

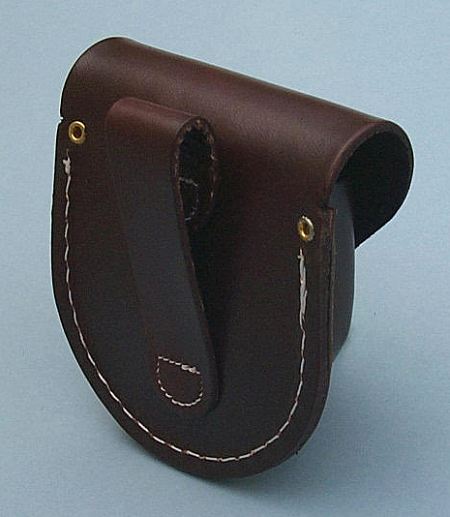

 Rear of Leather Case |
|

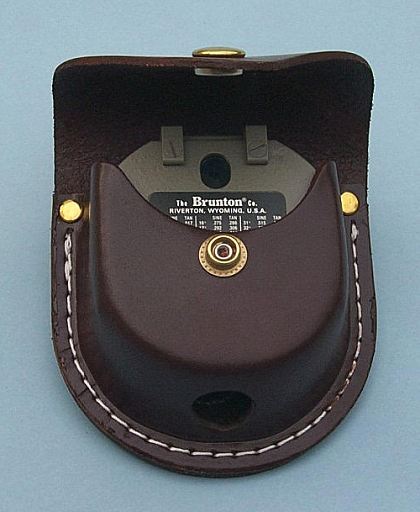

 Brunton Compass in Case |

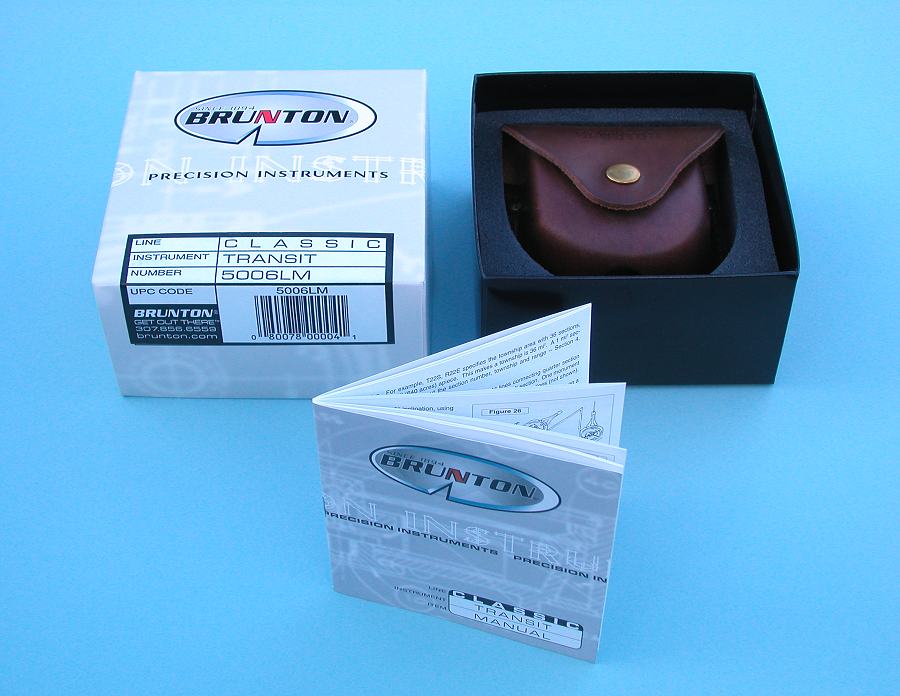

 Instruction Manual
and Packaging |
|
The optional Brunton Ball and Socket Tripod Mount is a must for high accuracy readings.
This exclusive mount fits all Brunton transits and is adjustable for both azimuth and vertical angle measurements.
The Brunton Ball and Socket Tripod Mount is precision manufactured using non-magnetic aluminum and brass materials.
The Ball and Socket Tripod Mount with standard 1/4 - 20 threads has a National Stock Number of NSN 6675-00-799-2963.
The optional Brunton Ball and Socket Tripod Mount weighs 4.4 ounces (125 grams) and normally $88,
but we offer it for only $60.
We also offer the Brunton Gentleman's Pocket Compass.
|

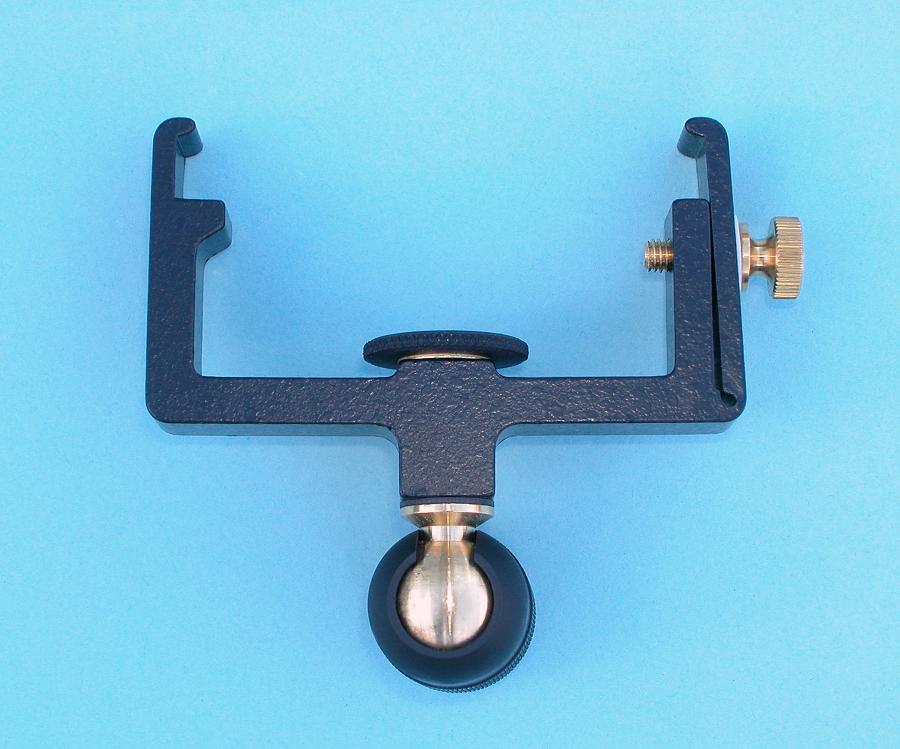

 Optional Brunton Ball &
Socket Tripod Mount |

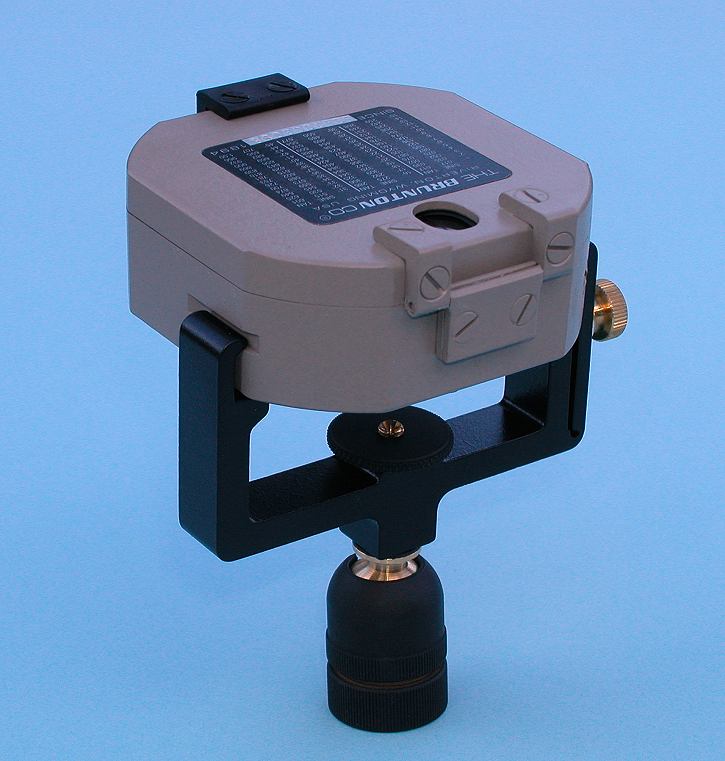

 Brunton Pocket Transit
on Optional Ball &
Socket Tripod Mount |
|
The F5006LM Brunton Compass with
leather case sells for only $449.
The Optional Brunton Ball and Socket
Tripod Mount is only $60.00.
|
 |
|
Regular
$538
$449 |
 |
|
Regular
$88
$60 |
|
